9 Reasons Why Electricians Make Mistakes (Splicing THHN Wire Using Wire Nuts)

Splicing wires is one of the most fundamental tasks electricians perform, but it requires attention to detail and adherence to safety standards. THHN (Thermoplastic High Heat-resistant Nylon-coated) wire is commonly used in residential, commercial, and industrial wiring projects due to its durability and resistance to heat and moisture. However, when splicing THHN wire using wire nuts, electricians can make several common mistakes that could lead to failures in the electrical system, safety hazards, or non-compliance with electrical codes. This article will discuss these mistakes in detail, focusing on how to avoid them to ensure safe and reliable electrical connections.

1. Improper Strip Length
2. Failing to Pre-twist Wires
3. Wrong Size Wire Nut
4. Over/Under Tightening
5. Improper Wire Arrangement
6. Reusing wire nuts
7. Not Inspecting the Splice
8. Ignoring Manufacturer Guidelines
9. Wrong tools

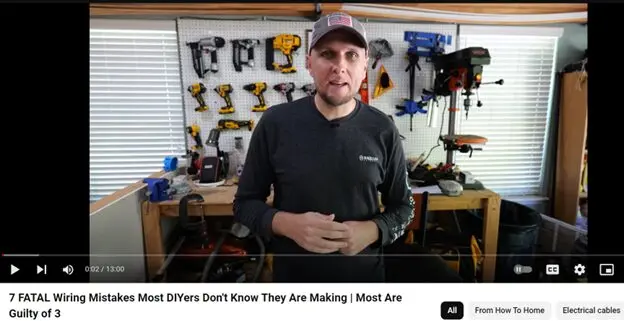

0:00 – Splice 2 solid wires together
3:45 – Wrong size wire nut
6:00 – Splice solid and stranded THHN together
9:00 – Use Wago lever wire nuts

1. Improper Strip Length

One of the most common mistakes electricians make when splicing THHN wire using wire nuts is incorrect strip length. The strip length refers to the length of insulation that is removed from the wire before making a splice. If too much insulation is removed, the exposed copper can be left vulnerable to short circuits or physical damage. On the other hand, if too little insulation is removed, the wire nut may not properly secure the connection, leading to a loose splice.

• Over-stripping: When too much insulation is stripped off the wire, the exposed copper may extend beyond the wire nut. This can result in a short circuit if the bare wire comes into contact with other conductive surfaces or wires. Additionally, over-stripping can lead to the wire being more prone to bending or breaking due to the lack of insulation.
• Under-stripping: If the insulation is not stripped far enough, the wire nut may not properly grip the copper wire, resulting in a weak or loose connection. This can lead to intermittent connections, arcing, or even a complete failure of the splice. Under-stripping also makes it difficult to twist the wires together effectively, which is crucial for a secure connection.

2. Failing to Pre-twist Wires

Another common mistake is failing to pre-twist the wires before applying the wire nut. Pre-twisting involves twisting the exposed ends of the THHN wires together before securing them with a wire nut. Some electricians believe that the wire nut alone is sufficient to make a solid connection, but this is not always the case.

• Advantages of Pre-twisting: Pre-twisting the wires ensures that they are securely interlocked, which helps maintain a strong electrical connection even if the wire nut is subjected to movement or vibration. It also helps distribute the electrical load evenly across all wires in the splice, reducing the risk of overheating.
• Risks of Not Pre-twisting: When wires are not pre-twisted, the wire nut may not effectively hold them together, leading to a poor connection. This can result in increased resistance at the splice point, which generates heat and can eventually cause the wire nut to melt or the splice to fail. In extreme cases, it can lead to electrical fires.

3. Using the Wrong Size Wire Nut

Wire nuts come in various sizes, each designed to accommodate a specific range of wire gauges and the number of wires being spliced. Choosing the wrong size wire nut is a frequent error that can compromise the integrity of the splice.

• Too Small: If the wire nut is too small for the wires being spliced, it may not cover all the exposed copper, leaving part of the wire unprotected. Additionally, a small wire nut may not have enough internal space to accommodate all the wires, leading to a weak connection. This can result in the wires slipping out of the nut, causing an open circuit or arcing.
• Too Large: Conversely, using a wire nut that is too large can also cause problems. A large wire nut may not compress the wires adequately, resulting in a loose connection. This can cause intermittent electrical problems and may lead to overheating, which is a significant fire hazard.
• Matching the Wire Nut to the Job: Electricians should always refer to the manufacturer’s guidelines to select the appropriate wire nut size based on the gauge and number of wires being connected. Using the correct size ensures a secure connection and minimizes the risk of electrical faults.

4. Over-Tightening or Under-Tightening the Wire Nut

The amount of torque applied when tightening a wire nut is critical to achieving a secure and reliable connection. Both over-tightening and under-tightening are common mistakes that can lead to problems.

• Over-Tightening: Applying too much force when tightening the wire nut can damage the wires or the nut itself. Over-tightening can cause the wire strands to break, particularly with THHN wire, which is relatively stiff and less flexible than other types of wire. It can also strip the threads inside the wire nut, making it ineffective at holding the wires together.
• Under-Tightening: On the other hand, if the wire nut is not tightened enough, the connection may be loose. This can result in the wires separating over time, especially if they are subjected to vibration or movement. A loose connection increases electrical resistance, which generates heat and can cause the splice to fail or even ignite.
• Finding the Right Balance: Electricians should tighten wire nuts to the point where they are snug, but not so tight that the wires or the nut are damaged. Some wire nuts are designed to click or offer resistance when they are properly tightened, providing a helpful indicator that the connection is secure.

5. Improper Wire Arrangement

The arrangement of wires before inserting them into the wire nut is another area where mistakes are often made. Improper wire arrangement can lead to a weak connection or uneven distribution of the electrical load.

• Misalignment of Wires: If the wires are not aligned properly before inserting them into the wire nut, one or more wires may not make full contact with the others. This can create an uneven connection where some wires carry more of the electrical load than others, leading to overheating and potential failure.
• Twisting Wires Unevenly: When pre-twisting wires, it’s essential to twist them evenly. If one wire is twisted more tightly than the others, it may not be fully engaged by the wire nut, resulting in a weak connection. Additionally, uneven twisting can cause the wires to bunch up, making it difficult to fit them into the wire nut properly.
• Keeping Wires Straight: Electricians should ensure that all wires are straight and aligned before twisting them together or inserting them into the wire nut. This helps create a uniform and secure connection that distributes the electrical load evenly across all wires.

6. Reusing Wire Nuts

Reusing wire nuts is a common practice among some electricians, but it is not recommended. Wire nuts are designed to create a secure connection on the first use, and reusing them can compromise the integrity of the splice.

• Wear and Tear: Wire nuts are made of plastic and have internal metal threads that grip the wires. With each use, these threads can wear down, reducing their ability to hold the wires securely. Additionally, the plastic shell can become deformed or damaged, making it less effective at insulating the connection.
• Risk of Poor Connections: Reusing wire nuts increases the likelihood of a poor connection, which can lead to the same problems as loose connections—intermittent power, arcing, and overheating. For this reason, it is always better to use a new wire nut for each splice to ensure the connection is as secure and safe as possible.

7. Not Inspecting the Splice After Installation

Once the wire nut has been applied, it’s essential to inspect the splice to ensure it is secure and that no copper is exposed. Failing to do so is a common oversight that can lead to future problems.

• Exposed Copper: After installing the wire nut, electricians should check to make sure that no copper is visible. Exposed copper can lead to short circuits, especially in crowded electrical boxes where the wires may come into contact with other conductive surfaces.
• Loose Wires: It’s also important to check that all wires are securely held by the wire nut. A quick tug on each wire can help confirm that they are properly connected. If any wires move, the connection is not secure and should be redone.
• Final Check: Performing a final inspection of the splice ensures that it meets safety standards and is less likely to fail over time. This step is often skipped in the interest of saving time, but it is crucial for preventing electrical issues down the line.

8. Ignoring Manufacturer Guidelines

Each manufacturer of wire nuts provides specific guidelines for their use, including the number of wires they can accommodate, the appropriate wire gauges, and the correct installation procedures. Ignoring these guidelines is a common mistake that can lead to unsafe connections.

• Mismatch of Wire Nut to Application: Using a wire nut outside of its intended application can result in a weak or unsafe connection. For example, some wire nuts are designed for use with only solid wire, while others can accommodate both solid and stranded copper wire. Using the wrong type of wire nut can lead to a poor connection.
• Not Following Installation Instructions: Manufacturer guidelines also include instructions for how to properly install the wire nut, including how much to strip the wires, whether or not to pre-twist, and how much torque to apply. Ignoring these instructions can compromise the quality of the splice.
• Compliance with Codes: In addition to manufacturer guidelines, electricians must also ensure that their splices comply with local electrical codes. Failure to do so can result in violations, fines, or the need to redo work. Manufacturer guidelines are often designed with these codes in mind, so following them helps ensure compliance.

9. Failing to Use the Right Tools

Using the wrong tools or failing to use tools altogether is another mistake that can lead to poor splices. Proper tools are essential for stripping the wire, twisting the wires together, and securing the wire nut.

• Dull Wire Strippers: Using dull or worn-out wire strippers can damage the wire, cutting into the copper or leaving rough edges that can make it difficult to achieve a secure connection. Electricians should ensure their tools are in good condition and replace them as needed.
• Not Using Pliers for Twisting: Some electricians try to twist wires together by hand, which can result in uneven or loose twists. Using pliers helps create a tight, even twist that is more likely to hold up over time. It also makes it easier to insert the twisted wires into the wire nut.
• Overlooking Torque Tools: Some wire nuts require a specific amount of torque to be properly installed. Using a torque tool ensures that the correct amount of force is applied, reducing the risk of over- or under-tightening.

Conclusion

Splicing THHN wire with wire nuts is a basic but critical task that requires attention to detail and adherence to best practices. Common mistakes such as improper strip length, failing to pre-twist wires, using the wrong size wire nut, and neglecting to inspect the splice can compromise the safety and reliability of the electrical system. By being aware of these mistakes and taking steps to avoid them.
